PB-12 LED Work Light

PB-12 LED Work Light

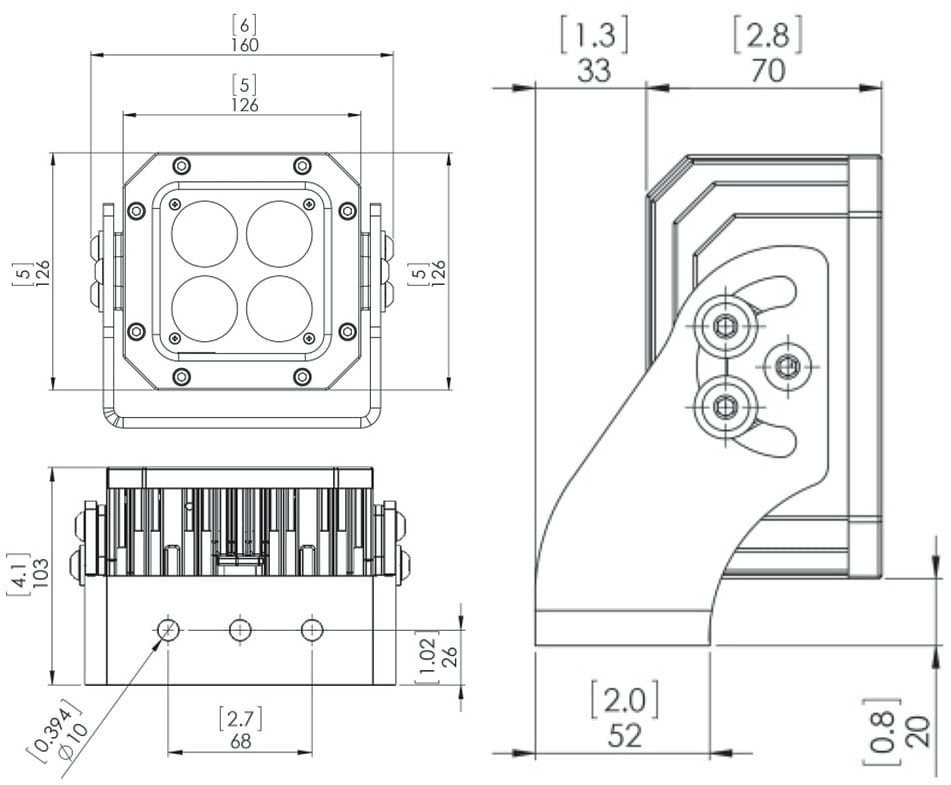

Product Drawings

Light Map - Spot

Spot lux distribution from a height of 3 m (10 feet) with 17ᵒ tilt.

Light Map - Flood

Flood lux distribution from a height of 3 m (10 feet) with 30ᵒ tilt.

PB-12 LED Work Light

Spot: SX62-0646
Flood: SX62-0647

Marine, Solar Cell, Work Lights for Heavy Equipment.

The PB-12 is designed using the latest LED technology available for use in extreme applications such as the mining industry. The intergrated technology utilised in the PB-12, include 12 CREE XM-L2 LED’s with a light output of 6,000 effective lumens, delivering a 100 lumen/W efficiency.

Lights: Raw: 7,200 | Effective: 6,050 Lumens
Light Output: 60W
Lumen Output: 6,000 Lumens
Input Current: 2.5A @ 24VDC
Operating Voltage: 12/24VDC
Luminaire Life: 50,000 Hours
Fixtures: Heavy Duty Stainless Steel
Base: Heavy Duty Cast Alloy
Weight: 1.5Kg (3.40lbs)
Packaging Dia: 17.8 x 15.2 x 7.6cm (7.0 x 6.0 x 3.0in)


  • Specifically designed for Mining applications
  • Applications – Marine, Solar Cell, Earthmoving & Mining Equipment
  • 6 High brightness CREE XM-L2 LED diodes with the best efficiency performance
  • Optimised built in thermal protection
  • High transparency secondary optics. Lens material Optical grade PMMA
  • Ingress protection IP76/IP68
  • Adjustable tilt up to ± 70°
  • Tempered glass lens cover
  • Deutsch connector with gold plated contacts
  • No radio interference
